Rotary Table Vertical Injection Molding Machine with 250T Clamping Force 929 cm³ Theoretical Shot Volume and 285 g/s Injection Rate

Place of Origin : Guangdong, China

Model Number : JTT-2500R

Brand Name : JINTONG

MOQ : 1 piece

Price : $65,600-67,650 / piece

Clamping Force : 250T

Max Injection Weight : 836g

Screw Diameter : 55 60 65 mm

Injection Pressure : 2087 1754 1494 kg/cm2

Theoretical Shot Volume : 929 cm3

Injection Rate : 285 cm3/sec

Screw Stroke : 280 mm

Screw Speed : 152 rpm

Heating Capacity : 20 kw

Opening Force : 26.4 tons

Min Mold Height : 300 mm

Opening Stroke : 450 mm

Max Open Daylight : 750 mm

Rotary Table Diameter : 1800 mm

Ejector Force : 4.6 tons

Contact Now

Product Description

Vertical rotary injection molding machine JTT-2500R

Clamping Force: 250T

Max injection Weight: 836g


Vertical clamping, vertical injection Easy to set torque , speed, deceleration distance and stand number segmentation SERVO motor control rotary table, forward-rotating, reverse-rotating, forward and reverse alternative rotating. 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity machine station number decide lower mold number, eg: 3 staitons have one upper mold 3pcs lower mold Optional energy-saving motor


Model
JTT-2500R
injection system
Screw Diameter
mm
55 60 65
Injection Pressure
kg/cm2
2087 1754 1494
Theoretical Shot Volume
cm3
665 792 929
Max Shot Weight
g
599 713 836
Injection Rate
cm3/sec
202 243 285
Screw Stroke
mm
280
Screw Speed
rpm
152
Heating Capacity
kw
20
clamping system
Clamping Force
tons
250
Opening Force
tons
26.4
Min Mold Height
mm
300
Opening Stroke
mm
450
Max Open Daylight
mm
750

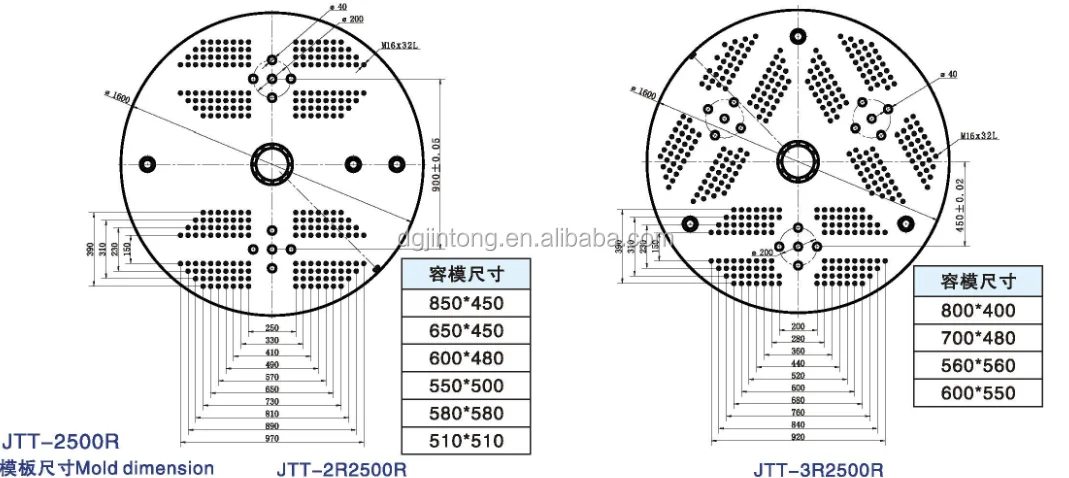

Mold Dimension
mm
850*450
Rotary Table Diameter
mm
1800
Ejector Force
tons
4.6
Ejector Stroke
mm
100
other
Motor Power
kw
33.8
Machine Dimension
m
3.8*2.55*4.12
Machine Weight
tons
13.6
Rotary Table Vertical Injection Molding Machine with 250T Clamping Force 929 cm³ Theoretical Shot Volume and 285 g/s Injection Rate
Rotary Table Vertical Injection Molding Machine with 250T Clamping Force 929 cm³ Theoretical Shot Volume and 285 g/s Injection Rate
Rotary Table Vertical Injection Molding Machine with 250T Clamping Force 929 cm³ Theoretical Shot Volume and 285 g/s Injection Rate

Main Features

1) vertical clamping, vertical injection,

2) clamping force, injection weight and shot speed can be changed according to actual demand.

3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity

Certifications
Rotary Table Vertical Injection Molding Machine with 250T Clamping Force 929 cm³ Theoretical Shot Volume and 285 g/s Injection Rate
Rotary Table Vertical Injection Molding Machine with 250T Clamping Force 929 cm³ Theoretical Shot Volume and 285 g/s Injection Rate
Rotary Table Vertical Injection Molding Machine with 250T Clamping Force 929 cm³ Theoretical Shot Volume and 285 g/s Injection Rate
Rotary Table Vertical Injection Molding Machine with 250T Clamping Force 929 cm³ Theoretical Shot Volume and 285 g/s Injection Rate

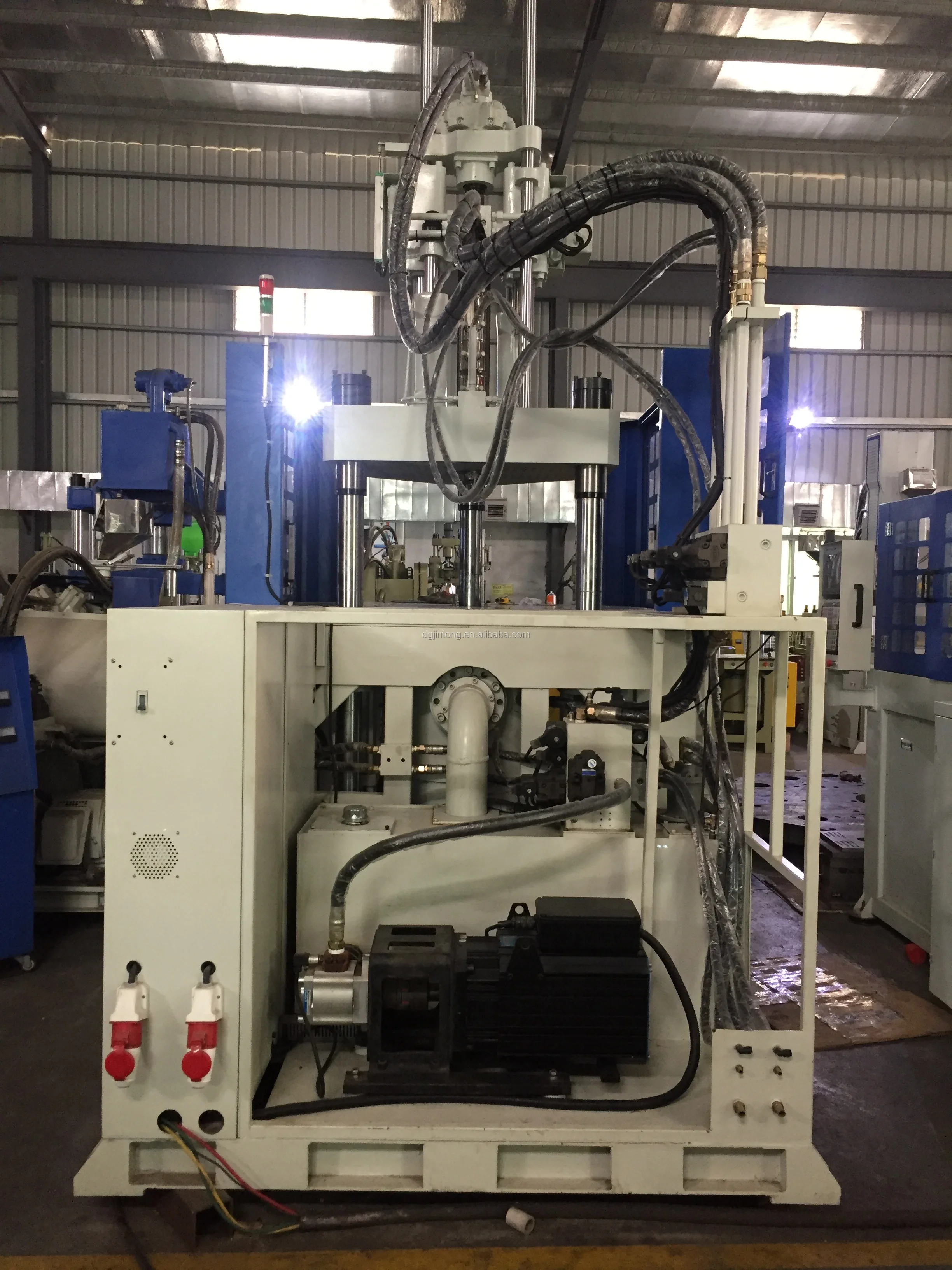

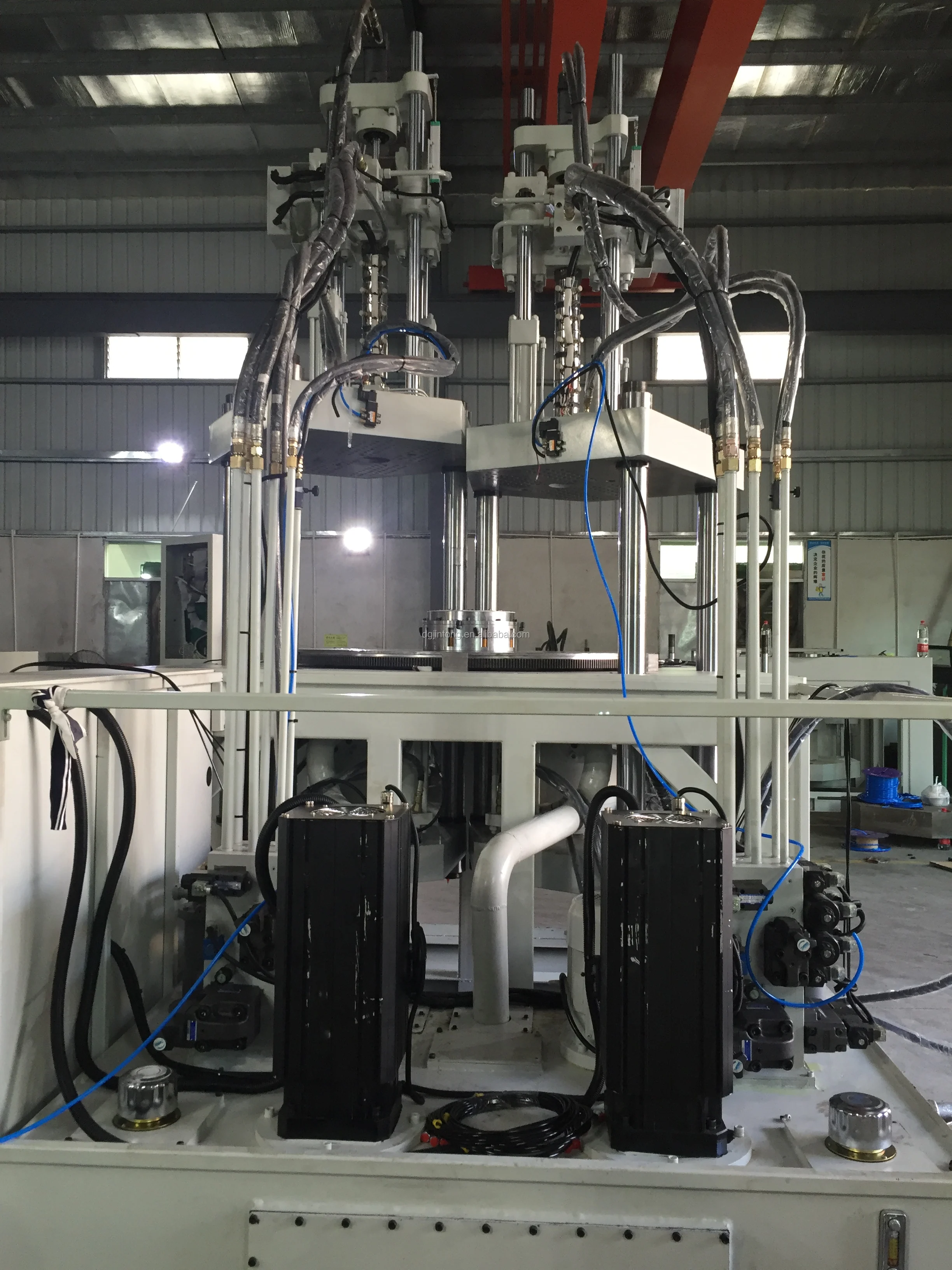

Detailed Images
Rotary Table Vertical Injection Molding Machine with 250T Clamping Force 929 cm³ Theoretical Shot Volume and 285 g/s Injection Rate
Rotary Table Vertical Injection Molding Machine with 250T Clamping Force 929 cm³ Theoretical Shot Volume and 285 g/s Injection Rate
Rotary Table Vertical Injection Molding Machine with 250T Clamping Force 929 cm³ Theoretical Shot Volume and 285 g/s Injection Rate
Our Service
Rotary Table Vertical Injection Molding Machine with 250T Clamping Force 929 cm³ Theoretical Shot Volume and 285 g/s Injection Rate

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

Rotary Table Vertical Injection Molding Machine with 250T Clamping Force 929 cm³ Theoretical Shot Volume and 285 g/s Injection Rate

SERVICE ADVANTAGE


17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
