Rotary Table Vertical 160 Ton Injection Moulding Machine JTT-1600R

Name: Rotary Table Vertical 160 Ton Injection Moulding Machine JTT1600R
Brand: JINTONG
Price: 56 USD

Rotary Table Vertical 160 Ton Injection Moulding Machine JTT-1600R Manufactures

Place of Origin : Guangdong, China

Model Number : JTT-1600R

Brand Name : JINTONG

Packaging Details : plastic film packing for rotary vertical injection molding machine 160T

Supply Ability : 400 Piece/Pieces per Month rotary vertical injection molding machine

Price : $56,000.00/pieces 1-4 pieces

Plastic Processed : PC, PVC, PA

Condition : New

Style : VERTICAL

Mold Height(mm) : 260 - 530 mm

Ejector Stroke(mm) : 75 mm

Ejector Force(kN) : 34 kN

Theoretical Shot Volume(cm³) : 570 cm³

Injection Rate (g/s) : 202 g/s

Plasticizing Capacity(g/s) : 400

Machine Type : Hydraulic

Injection Weight (g) : 513 g

Screw Speed (rpm) : 1 - 155 rpm

Screw diameter (mm) : 55 mm

Screw L/D Ratio : 28

Distance between Tie Bars : 660mm

Weight (KG) : 7000 kg

Type : screw injection

Open Stroke(mm) : 500 mm

Power (kW) : 22 kW

Warranty : 1 Year

Key Selling Points : Multifunctional

Applicable Industries : Manufacturing Plant

Showroom Location : None

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Pump, PLC, Pressure vessel

After-sales Service Provided : Engineers available to service machinery overseas

screw diameter : 45cm 50cm 55cm

screw stroke : 240mm

Product name : rotary table vertical injection molding machine JTT-1600R

opening force : 16.5T

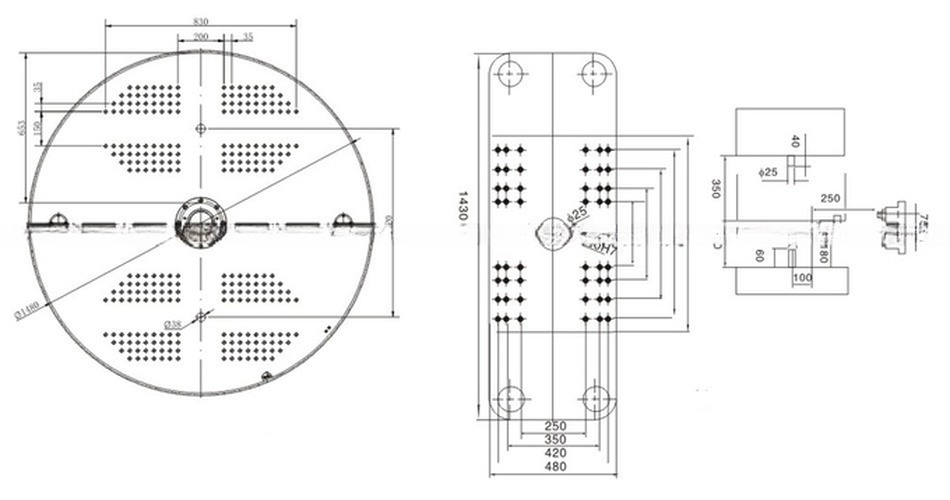

rotary table diameter : 1400mm

max daylight : 600/660mm

min old height : 250/310mm

ejector force : 3.4T

Machine dimension(L*W*H) : 2.8*2.1*3.4m

Port : SHENZHEN

Contact Now

Product Description

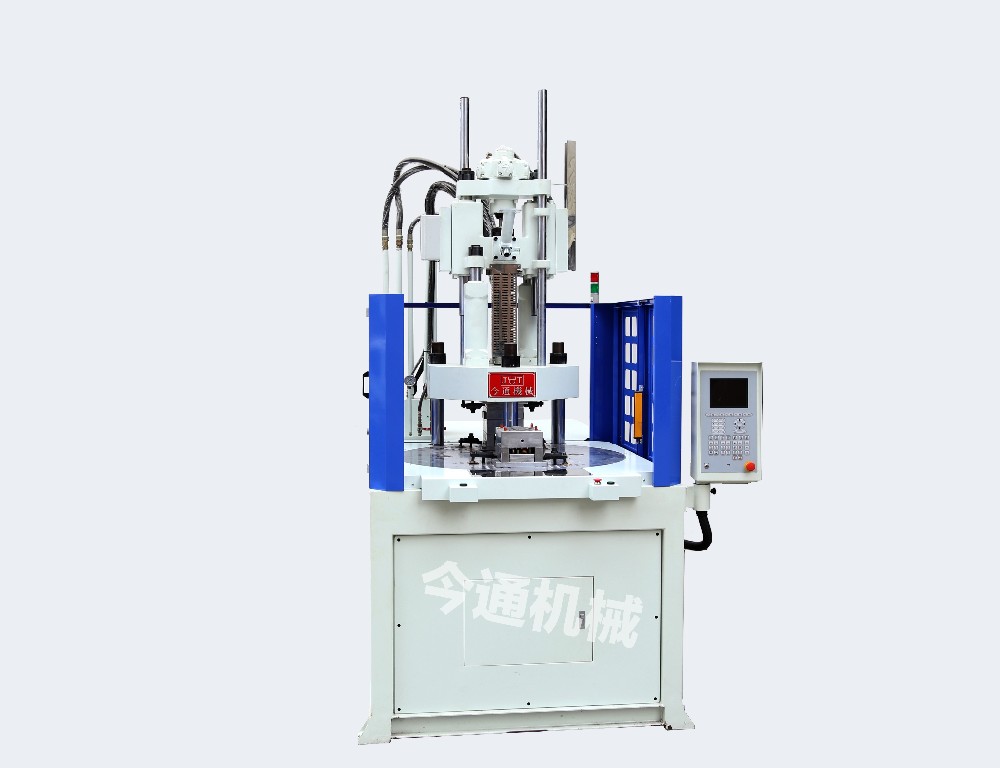

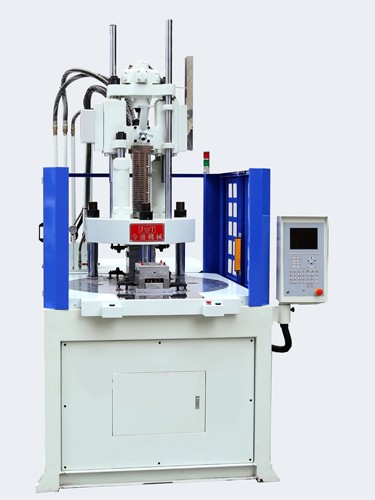

Vertical rotary injection molding machine JTT-1600R

Clamping Force: 160T

Injection Weight: 344-513g

Vertical clamping, vertical injection

Easy to set torque , speed, deceleration distance and stand number segmentation

Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.

Optional energy-saving motor

Rotary Table Vertical 160 Ton Injection Moulding Machine JTT-1600R

Main Features

1) vertical clamping, vertical injection,

2) clamping force, injection weight and shot speed can be changed according to actual demand.

3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity

Certifications

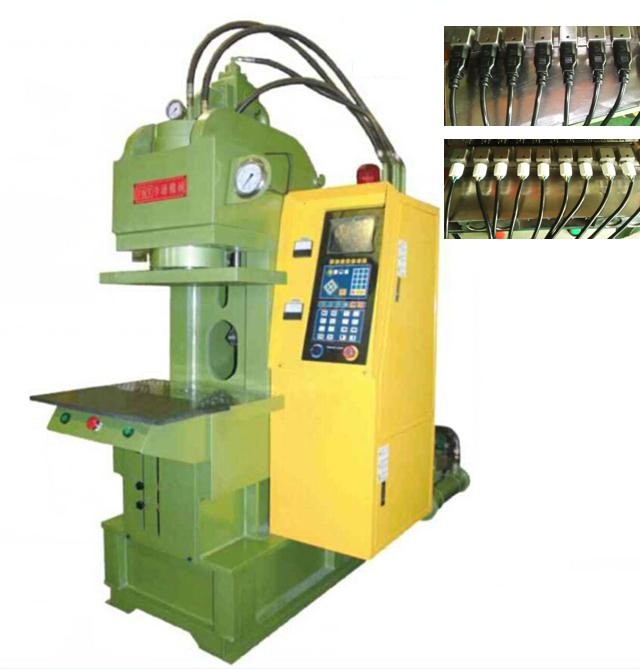

Detailed Images

Our Service

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
